Multi Colour Flexographic Printing Machines

We are the leading manufactures and suppliers of Multi Colour Flexographic Printing Machines.

Gabbar Industries Pvt. Ltd. designs and manufactures a range of flexographic printing machine for printing on HDPE/PP woven sack, jute bags, corrugated sheets as well as laminated jute and paper bags.

Feature
  • Compact and sturdy construction
  • Streamlined design for maximum speed
  • Easy to maintain and economical
  • No bush bearings, the machine is entirely based on ball bearings
  • Pressure release device avoides unnecessary tinting of conveyor belts
  • Strict quality controls
  • Efficient after sales service

Extra Attachments (at extra cost)
  • Stereo mounting system on canvas clothes saves the use of expensive adhesive tapes.
  • Bag drying device complete with heating chamber, blower and electric control panel.
  • Anilox Roll saves consumption of printing ink by 30% and gives better printing clarity

Product Details :
Minimum Order Quantity1 Unit
Automatic GradeAutomatic, Semi-Automatic
Max Printing Speed (meters/min)20-40, 40-60, 60-80
Max Printing Width0-500 mm, 500-1000 mm
BrandGabbar
Size (inch)36
Machine Type Automatic


Specifications :
Size C-30 / Servo
Machine Types Single/Two/Three and Four colour machines
Printing Area Upto width 28" , Length 45"
The printing area can be custom designed
Bag Size Width 32" . length 50"
However sizes can be modified as per requirements
Electrical Motor 1 HP for single colour
2 HP for 2 and 3 colour machines and
3 HP for 4 colour machines.
Area Required 1 colur 9 x 4 feet
2 colour 14 x 4 feet
3 colour 18 x 4 feet
4 colour 22 x 4 feet
Printing Capacity 25 to 40 bags per minute
Stereo Rubber stereos with minimum
recommended thickness of 5 mm.
Automatic Grade Automatic, Semi Automatic
Max Printing Speed (meters/min) 20-40, 40-60, 60-80
Max Printing Width 0-500mm, 500-1000mm

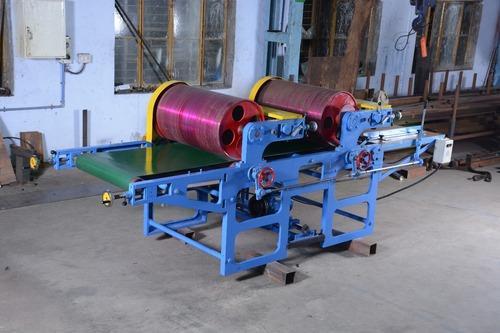

Bag To Bag Flexographic Printing Machine

Gabbar Industries Pvt. Ltd. designs and manufactures a range of PP Woven Bag printing machine for printing on HDPE/PP woven sack, jute bags, corrugated sheets as well as laminated jute and paper bags.

Feature
  • Compact and sturdy construction
  • Streamlined design for maximum speed
  • Easy to maintain and economical
  • No bush bearings, the machine is entirely based on ball bearings
  • Pressure release device avoides unnecessary tinting of conveyor belts
  • Strict quality controls
  • Efficient after sales service

EXTRA ATTACHMENTS (AT EXTRA COST)
  • Stereo mounting system on canvas clothes saves the use of expensive adhesive tapes.
  • Bag drying device complete with heating chamber, blower and electric control panel.
  • Anilox Roll saves consumption of printing ink by 30% and gives better printing clarity


Specifications :
Size C-30 / Servo
Machine Types Single/Two/Three and Four colour machines
Printing Area Upto width 28" , Length 45"
The printing area can be custom designed
Bag Size Width 32" . length 50"
However sizes can be modified as per requirements
Electrical Motor 1 HP for single colour
2 HP for 2 and 3 colour machines and
3 HP for 4 colour machines.
Area Required 1 colur 9 x 4 feet
2 colour 14 x 4 feet
3 colour 18 x 4 feet
4 colour 22 x 4 feet
Printing Capacity 25 to 40 bags per minute
Stereo Rubber stereos with minimum
recomended thickness of 5 mm


Product Details :
Minimum Order Quantity1 Piece
Machine TypeAutomatic
BrandGabbar Industries
Printing Width0-500 mm, 500-1000 mm
Size36
Brand/MakeGabbar
ConditionNew
Printing Speed20-40, 40-60, 60-80
Dimension4350 x 1500 x 1600

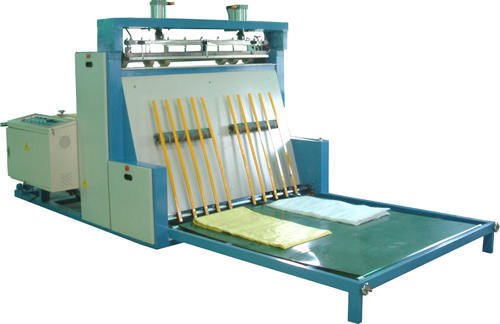

Polypropylene Bag Machine

We are engaged in manufacturing an excellent quality range of Polypropylene Bag Machine. This machine is designed and manufactured using the utmost quality components and the latest technology at our hi-tech manufacturing unit. Our offered product is highly acknowledged among clients for its remarkable features. We offer this product in customized options at competitive price.

Feature
  • User Friendly operation
  • Maintenance less design
  • Strong Sealing
  • Heavy duty Vibration free structure
  • Microprocessor with digital display

Optional:
  • Folder
  • Perforation
  • On line hole punch
  • On line ā€˜Dā€™ Punch
  • Bottom Gusset
  • Tbs System
  • Tape Applicator


Specifications :
MODEL SHIV:24 SHIV:30
Length (Mm) 65-1200 65-1200
Width (Mm) 600 750
Speed (Pcs./Min.)* 180 170
Connected Load (Kw) 5.0 6.0
Main Motor A.C. A.C.
Control System Servo Servo
Dimension (Mm)
( L x W x H )
4350 x 1500 x 1600 4350 x 1650 x 1600
Weight (Kgs.)
(Approx.)
1100 1200
* Depending on type of Material, Gauge Length of Bag.
