Home  »  Bag Closing Machine  »  Automatic Bag Closing Machine With Bag Infeed Device

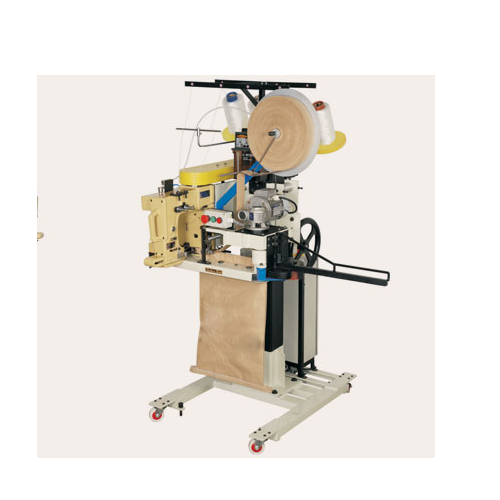

Automatic Bag Closing Machine With Bag Infeed Device

Automatic Bag Closing Machine with Bag In-feed Device comes with easy to operate interface that allows quick action while closing the mouth of filled bags. With the presence of all moving parts provided in the main housing, this also assures of achieving a completely sealed environment that safeguards the machines against influx possibilities of dirt and other foreign particles.

These machines can deliver stitch width from 5mm to 9mm with variable speed pulley provision that allows easy synchronization with existing conveyors.

Some of the industry sectors where these find applicability in include Sugar mills, Rice/Flour mills, Fertilizer plants, Powder milk manufacturing units, Cattle/Poultry feed plants and others.

Special Features :
  • Sturdy, Rigid, Easy to Operate and Efficient Bag Closing Machine for closing mouths of filled bags
  • In industries like fertilizers, sugar, rice/flour, cattle/poultry feed, powder milk, etc
  • Moving parts in main housing totally sealed against dirt, dust and foreign particles
  • The stitch width is adjustable from 5mm to 9mm
  • Provision of a variable speed pulley allows easy synchronization with an existing conveyor
  • Ease of inspection and maintenance is ensured by a simple mechanism
  • Capable of stitching filled bags of all kinds like H.D.P.E., PP, Jute, Polyjute, Hessian & craft paper bags with synthetics or cotton thread

Additional Features :
  • Single/Double needle, two/four thread, chain stitch heavy duty automatic bag closing machine with auto start, stop & auto thread cutting system with automatic bag in feed devices.
  • Automatic Bag in feed device for plain sewn closure on PP/PE Woven cloth bags & paper bags
  • The upper edge of the sack is smoothed by two V-Belts running in opposite direction & is positively transported the bags to the sewing machine.
  • In feed speed standard 10 M/Min. while ordered specify conveyor speed.
  • Special Designed Pedestal Column for Dual Head System.


Product Details :
Minimum Order Quantity1 Unit
CapacityCustomized
ModelAutomatic Bag Closing Machine with Bag Infeed Device
BrandGabbar


Specifications :
Conveyor Slat or Belt Type Slat or Belt Type
Seam Double Thread chain Stitch Four Thread Chain Stitch
Speed 800-900 Bags/hr 800-900 Bags/hr
Stitch width 5-9mm 5-9mm
Needle DRX2-26(Orgen/Groze-BECKRT) DRX2-26(Orgen)
Brake Motor 3 Phase 4 Pole 0.37 KW (Depend on Conveyor Speed) 3 Phase 4 Pole 0.37 KW (Depend on Conveyor Speed)
Start/Stop Photo-Switch Photo-Switch
Cutter Type Air cylinder driven guillotine cutter Air cylinder driven guillotine cutter
Air Pressure 6 Kg/cm2 6 Kg/cm2
Air Consumption 250 Lit/min 250 Lit/min
Photo Cell Range Upto 500mm Upto 500mm
Infeed system motor 0.25 H.P., 3 Phase, 4 Pole (Depend on Conveyor Speed) 0.25 H.P., 3 Phase, 4 Pole (Depend on Conveyor Speed)
Drive Motor For sewing head 0.5 H.P., 3 Phase For sewing head 0.5 H.P., 3 Phase
Conveyor Slat or Belt Type Slat or Belt Type
Lubrication System Manual Oil Feed or Oiler Manual Oil Feed or Oiler





Automatic Pedestal Column

Leveraging on our rich experience in the industry, we are able to offer our clients wit an exquisite range of Automatic Pedestal Column with Bag in feed Device basically used in various packaging industries. this column is supported by a Bag Closing Machine for closing mouths of the filled bags.

Technical Specifications:

  • Speed: 10 M/Min
  • Needle Type: Single/Double
  • Thread: Two/four

Some of the features include:

  • Sturdy
  • Rigid
  • Easy to Operate
  • Efficient
  • Low consumption of electricity

This automated pedestal column is further assisted by an Automatic Bag in feed device for plain sewn closure on PP/PE which is fit for woven cloth bags & paper bags.The upper edge of the sack is smoothed by two V-Belts running in opposite direction and is positively transported the bags to the sewing machine.In feed speed standard 10 M/Min. while ordered please specify conveyor speed.We also customize Special Designed Pedestal Column for Dual Head System as per the requirement of the client. Some of the application areas of this machine:

  • Fertilizers
  • Sugar
  • Rice / flour
  • Cattle / poultry feed
  • Powder milk
  • Chemical plant


Some of the features include:

  • Moving parts in main housing totally sealed against dirt, dust and foreign particles
  • The stitch width is adjustable from 5mm to 9mm
  • Provision of a variable speed pulley allows easy synchronization with an existing conveyor
  • Ease of inspection and maintenance is ensured by a simple mechanism
  • Capable of stitching filled bags of all kinds like H.D.P.E., PP, Jute, Polyjute, Hessian & craft paper bags with synthetic or cotton thread.
  • Single/Double needle
  • Two/four thread












Bag Inseed Device with Trimmer for Paper Bags

We at Gabbar Industries, continuously strive to research and develop new machines that can help our end customers. We are in regular touch with our industrial customers, to better understand their requirements and develop machines based on their changing needs. Currently our R & D department is working on developing"Bag In seed Device with Trimmer for Paper Bags"

Technical Specifications:

  • Power Consumption: 2 HP
  • Current: 220 V
  • In feed speed standard: 10 M/Min

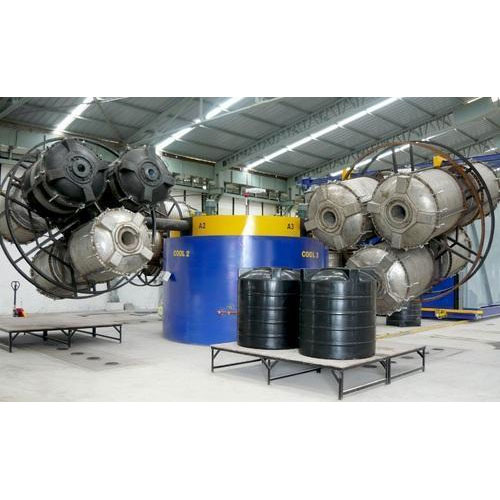

Rotational Mounding Machine

We are the manufacturers, suppliers and exporters of Rotational Mounding Machine. These machines are offered under brand name 'GABBAR TECH' and are used in packaging industries for various applications.

Technical Specifications:

  • Speed: 5000 PCS/HR
  • Voltage: 380V/220V
  • Use For Material: LDPE, HDPE
