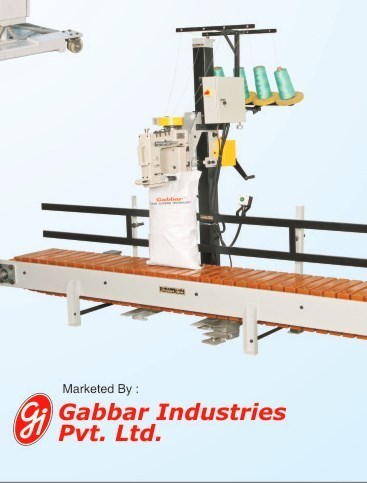

Bag Closing Machine With Wooden Slat Conveyor

Bag Closing Machine with Wooden Slat Conveyor is recognized for easy user interface that allows comfortable handling of involved operations. Suitable for closing the mouth of filled bags, these are highly preferred in industry sectors like Rice/flour, Fertilizers, Sugar, Powder milk, Cattle/poultry feed and others. Further, with all moving parts present inside the main housing, the completely sealed interface also protects the machines from dirt and dust.

Some of the operational feature of the machines includes capability to handle stitch width from 5mm to 9mm as well as provision of variable speed pulley that provides easy synchronization with existing conveyor. Other than these, the machine also comes with simple inspection and maintenance mechanism.

These machines can handle stitching of different varieties of filled bags including those made of materials like Jute, Poly-jute, H.D.P.E., PP and craft paper bags through use of synthetic or cotton thread options.

Special Features :
  • Sturdy, Rigid, Easy to Operate and Efficient Bag Closing Machine for closing mouths of filled bags
  • In industries like fertilizers, sugar, rice/flour, cattle/poultry feed, powder milk, etc
  • Moving parts in main housing totally sealed against dirt, dust and foreign particles
  • The stitch width is adjustable from 5mm to 9mm
  • Provision of a variable speed pulley allows easy synchronization with an existing conveyor
  • Ease of inspection and maintenance is ensured by a simple mechanism
  • Capable of stitching filled bags of all kinds like H.D.P.E., PP, Jute, Polyjute, Hessian & craft paper bags with synthetics or cotton thread

Specifications :
Conveyor Slat or Belt Type Slat or Belt Type
Conveyor
Dimension
2000mm x 390mm x275mm 2000mm x 390mm x275mm
No. of Needle Single Double
Needle DRX2-26(Orgen/Groze-BECKRT) DRX2-26(Orgen)
Seam Double Thread chain Stitch Four Thread Chain Stitch
Speed 800-900 Bags/hr 800-900 Bags/hr
Thread Cotton or Synthetics Cotton or Synthetics
Stitch width 5-9mm 5-9mm
Cutter Type Mechanical Thread Cutter Mechanical Thread Cutter
Drive Motor For sewing head 0.5 H.P., 3 Phase For
Conveyor 1 H.P., 3 Phase
For sewing head 0.5 H.P., 3 Phase For
Conveyor 1 H.P., 3 Phase
