Woven Sack Bag Conversion Line
New Development & Product Launch :
(Model No. BCS 40)
Woven Sack Bag Conversion Line is recognized for
delivering optimum support in meeting the production demands of woven
sacks. Available under different models with change in specifications and
operational features, these woven bag making lines are equipped with two
Servo motors to deliver consistent performance support. Further, these are
also made available with options of 90° Bag Transfer
Gripper, operation interface using display screen and others.
Some of the operational specifications of these conversion lines include
diameter of unwinding cloth of 1000mm (max), width of unwinding cloth of
16 to 32 inch (can be adjusted as per the requirements), cutting length of
19 to 50 inch (can be adjusted as per the requirements), production output
of 32 to 40 bags per minute.
Apart from these, some of the other working specifications include sewing
unit functioning on 4500 rpm 1 H.P., length accuracy maintained of within ±1mm range, cutting knife used comprising superior grade
alloy steel based cutter with tubular heater option. In the offered woven
sack lines, we also offer the provision of adjusting the length of belts
as well as of marking points as per the requirement.
We can also custom design these machines in different specifications as
demanded by the customers.
Special Features :
- Delivered with 2 servo motors for achieving ±1 mm
cutting length
- Comes with option of quality alloy steel cutters as well as bag mouth
anti-stick device
- Equipped 90° Bag Transfer Gripper
- Display Screen Operation Interface
Other than these, some of the optional features that can be
provided with these woven sack lines include:
- Zigzag type high performance based cutter of alloy steel
- Sensor option for EPC & printing mark reading
- Cross cutter (cold cutter) for laminated bags
Specifications :
| Diameter of Unwinding Cloth |
1000mm Maximum Applicable |
| Width of Unwinding Cloth |
16-32 inch Adjustable |
| Cutting Length |
19-50 inch Adjustable |
| Production Output |
32-40 Bags/Minute |
| Sewing Unit |
4500 RPM 1 H.P. |
| Length Accuracy |
Within ± 1mm Range |
| Cutting Knife |
High Quality Alloy Steel Cutter With Tubular Heater |
Note : Number of Bags depend on fabric material
Rotational Mounding Machine
We are the manufacturers, suppliers and exporters of Rotational Mounding Machine. These machines are offered under brand name 'GABBAR TECH' and are used in packaging industries for various applications.
Technical Specifications:
- Raw Material Procurement: Customer End
- Finished Product Details: Rotational Mounding Machine
- Finished Product Delivery Type: Self Pick Up
Automatic D Cutting And String Machine For Woven Sack
Woven Sack Bag Conversion Line is recognized for delivering optimum support in meeting the production demands of woven sacks. Available under different models with change in specifications and operational features, these woven bag making lines are equipped with two Servo motors to deliver consistent performance support. Further, these are also made available with options of 90° Bag Transfer Gripper, operation interface using display screen and others.
Some of the operational specifications of these conversion lines include diameter of unwinding cloth of 1000mm (max), width of unwinding cloth of 16 to 32 inch (can be adjusted as per the requirements), cutting length of 19 to 50 inch (can be adjusted as per the requirements), production output of 32 to 40 bags per minute.
Apart from these, some of the other working specifications include sewing unit functioning on 4500 rpm 1 H.P., length accuracy maintained of within ±1mm range, cutting knife used comprising superior grade alloy steel based cutter with tubular heater option. In the offered woven sack lines, we also offer the provision of adjusting the length of belts as well as of marking points as per the requirement.
We can also custom design these machines in different specifications as demanded by the customers.
Special Features :
- Delivered with 2 servo motors for achieving ±1 mm
cutting length
- Comes with option of quality alloy steel cutters as well as bag mouth
anti-stick device
- Equipped 90° Bag Transfer Gripper
- Display Screen Operation Interface
Other than these, some of the optional features that can be
provided with these woven sack lines include:
- Zigzag type high performance based cutter of alloy steel
- Sensor option for EPC & printing mark reading
- Cross cutter (cold cutter) for laminated bags
Specifications :
| Diameter of Unwinding Cloth |
1000mm Maximum Applicable |
| Width of Unwinding Cloth |
16-32 inch Adjustable |
| Cutting Length |
19-50 inch Adjustable |
| Production Output |
32-40 Bags/Minute |
| Sewing Unit |
4500 RPM 1 H.P. |
| Length Accuracy |
Within ± 1mm Range |
| Cutting Knife |
High Quality Alloy Steel Cutter With Tubular Heater |
Note : Number of Bags depend on fabric material

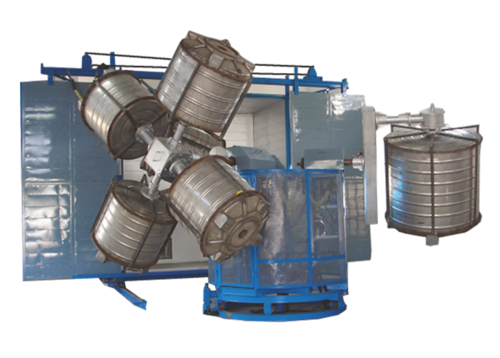

Rock And Roll Rotational Moulding Machine
We are a leading manufacturer and supplier of a quality assured range of Rock & Roll Rotational Moulding Machine. Designed in compliance with the industry standards and fabricated using premium grade material, these are optimum in quality and reliable in nature. Our esteemed clients can avail these machines from us at economical prices and within the stipulated time period.
Product Details :
| Model | RM1, RM2, RM3, RM5, RM10, RM20, RM30 |
| Maximum Loading Capacity | 500 to 5000 Liters (Double Cavity), 1000 to 30000 Liters (Single Cavity) |
| Power HP | 4.0 to 30 |
Features :
- Ideal Machine for LARGE Size Containers
- High Productive - Versatile
- Low Capital Investment
- Easy To Operate
- Minimum Mechanical Electrical Maintenance
- Negligible Rejections in Processing
- Individual and Main Controlling Valve Regulating System Leads to Best Fuel Economy
- Robust Sturdy Design for Trouble Free Running
- Superior Designed Burners to Give The Best Quality Flame with Minimum Fuel Consumption
- Efficient Burner systems are Available for Gas Diesel
- Bigger Size Machines are provided with Adjustments to Process Smaller Moulds Economically, Ensuring Better Machine Utilization
- Custom Designed Machines to Suit Your Moulding Requirements are Also Undertaken
Specifications :
- Model: RM1, RM2, RM3, RM5, RM10, RM20, RM30
- Maximum Loading Capacity: 500 to 5000 Liters (Double Cavity), 1000 to 30000 Liters (Single Cavity)
- Power HP: 4.0 to 30
Bi Axial Rotational Moulding Machine
Relying on our vast industry experience and sophisticated facilities, we are engaged in offering quality assured range of Bi-Axial Rotational Moulding Machine. These are offered in varied finishes and capacity range of 10000 liters. We also offer excellent installation and other after-sales services for these machine.
Advanced Designed Machine:
- Fully Automatic Compact for Consistent Quality Product
- Sturdy Unique Mechanical Design for Trouble Free Running
- High Efficient Heating Chamber for The Best FUEL Economy
- All Electrical/Mechanical Safety Interlock for Safety Working
- High Efficient LPG/DIESEL Burner for Fuel Economy
- Specially Design Blowers to Work Under High Temperature
- Unique Design for Easy Maintenance
Specifications:
- Model: BRS-1, BRS-2, BRS-5, BRS-10, BRM-2-2S, BRS-2-3S, BRM-5
- Power HP: 11.0 to 45.0
- Cooling System: Air
- Fuel: LPG/Diesel

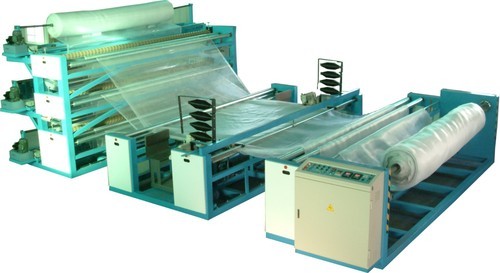

Bag Conversion Line
Woven Sack Bag Conversion Line is recognized for delivering optimum support in meeting the production demands of woven sacks. Available under different models with change in specifications and operational features, these woven bag making lines are equipped with two Servo motors to deliver consistent performance support. Further, these are also made available with options of 90° Bag Transfer Gripper, operation interface using display screen and others.
Some of the operational specifications of these conversion lines include diameter of unwinding cloth of 1000mm (max), width of unwinding cloth of 16 to 32 inch (can be adjusted as per the requirements), cutting length of 19 to 50 inch (can be adjusted as per the requirements), production output of 32 to 40 bags per minute.
Apart from these, some of the other working specifications include sewing unit functioning on 4500 rpm 1 H.P., length accuracy maintained of within ±1mm range, cutting knife used comprising superior grade alloy steel based cutter with tubular heater option. In the offered woven sack lines, we also offer the provision of adjusting the length of belts as well as of marking points as per the requirement.
We can also custom design these machines in different specifications as demanded by the customers.
Special Features :
- Delivered with 2 servo motors for achieving ±1 mm
cutting length
- Comes with option of quality alloy steel cutters as well as bag mouth
anti-stick device
- Equipped 90° Bag Transfer Gripper
- Display Screen Operation Interface
Other than these, some of the optional features that can be
provided with these woven sack lines include:
- Zigzag type high performance based cutter of alloy steel
- Sensor option for EPC & printing mark reading
- Cross cutter (cold cutter) for laminated bags
Specifications :
| Diameter of Unwinding Cloth |
1000mm Maximum Applicable |
| Width of Unwinding Cloth |
16-32 inch Adjustable |
| Cutting Length |
19-50 inch Adjustable |
| Production Output |
32-40 Bags/Minute |
| Sewing Unit |
4500 RPM 1 H.P. |
| Length Accuracy |
Within ± 1mm Range |
| Power Consumption |
4500 RPM 1 H.P. |
| Cutting Knife |
High Quality Alloy Steel Cutter With Tubular Heater |
Note : Number of Bags depend on fabric material

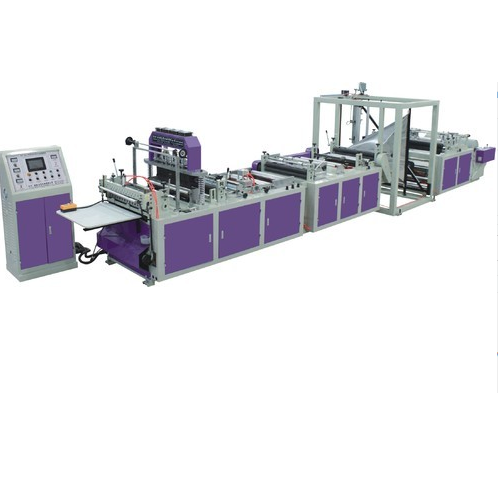

PP Woven Sack Making Machine
Being a quality driven organization, we efforts are directed towards offering world-class PP Woven Sack Making Machine. This machine is packed with high-utility features like automatic control and smooth operations. Owing to their maximum output capacity, these machines have become the first choice of the customers. Post-production, these machine is tested against various quality parameters to ensure defect-free deliveries at client's premise.
